Description

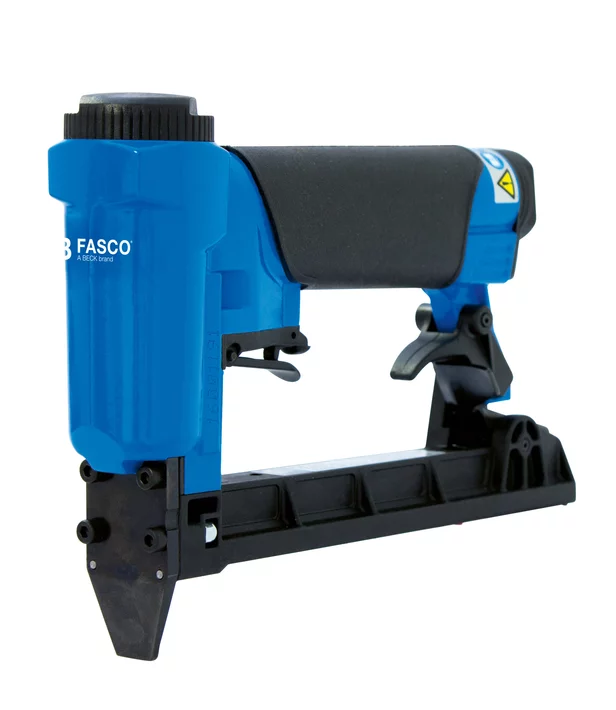

The Fasco F1B 14-16 14 series upholstery Stapler is ready to be dispatched by nationwide next day delivery.

Designed with long and narrow nose for excellent job visibility.

One hand latch for fast reloading time.

Magazine without any welded parts makes maintenance and helps to extend durability of tool.

Extended life driver pin blade for robust industrial environments and durability.

Securall Fastenings stocks spare parts for the Fasco F1B 14-16 14 series Upholstery Stapler.

Securall Fastenings stocks 14 series upholstery staples for the Fasco 14 series upholstery stapler.

Rubber comfort grip reduces operator fatigue after long hours usage.

Rear exhaust with muffler keeps sound to a minimum.

Bottom quick loading magazine allows for high speed stapling and keeps out the dirt.

Technical specifications:

Tool type:  fine wire stapler

Magazine Capacity:  180 staples

Fastener length:  6 – 16mm

Height:  157mm

Width:  42mm

Length:  218mm

Weight:  0.775 kg

Pressure 4 – 7 bar (60 – 100 psi)

Air Consumption per cycle:  0.37l at 6.2bar (90psi)

Actuation system:  single shot

Loading:  bottom loading

Noise value:  (EN 12549+A1 : 2008, EN ISO 4871 : 2009)

• LWA,1s: 89.02 dB (A) – KWA,1s, 2.5
• LpA,1s: 79.70 dB (A) – KpA,1s, 2.5

Applications:

upholstery, boat building, construction, general tacking, carpets, underlay, remodeling, re-upholstery, construction, garden furniture, moldings, joinery
