Description

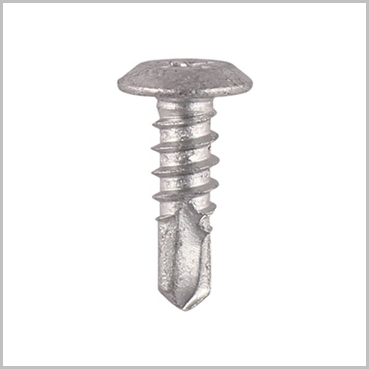

4.8 x 16mm Low Profile Pan Head Screw is ready for next day delivery.

4.8 x 16mm Low Pan Head Screws are ideal for steel or metal frame constructions.

This 16mm Low Profile Pan Head Screw has 500 screws per box.

Its light duty gives a flush panel finish.

Silver organic plating to give up to 500 hours of salt spray

CE approved and other certifications on request.

Large head diameter for increased clamping and better over all fixing.

Phillips No.2 recess for a positive drive into steel.

Technical Data:

Size (mm) 4.8 x 16

Driver Bit Size PH2

Pack Type Box

MDT (mm) 4

Included Items PH2 S2 Bit (Qty 1)

Finish Exterior (Silver Organic)

Recess Type Phillips

Head Type Low Profile Pan

Thread Type 60° Self-Tapping

Point Type Self-Drilling

Corrosion Rating (1-5) 3 – Urban & industrial areas with a low salt atmosphere

Material Carbon Steel

Salt Spray Resistance (Hrs) Tested to BS EN 9227 500

Pack Qty 500

Substrates Steel

MOQ Increment 1

MOQ 1

Packs per Carton 15

Packs per Pallet 540

Pallet Qty 270000

Rec. RPM 1,800 – 2,500

Effective Thread L (mm) 7

Head Ø (mm) 9.45

Applications:

Steel frame, steel track, metal frame construction screws, tek screws.
